Technical Information
Specification

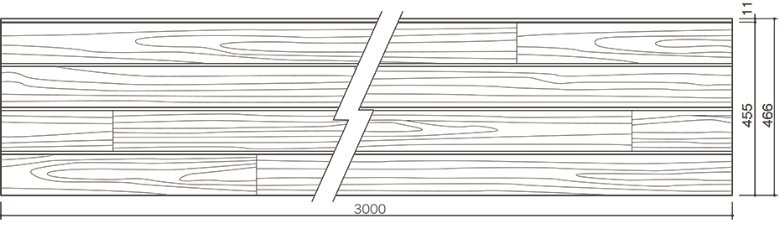

Size and weight of siding panel
| Length : | 3000mm |
|---|---|
| Width : | 455mm |
| Thickness : | 14mm |
| Weight : | 21kg / piece |
Physical property value
Performance list
| Item | Unit | Index | Reference |
|---|---|---|---|
| Specific gravity | — | 1.0* | Dry at 105°C for 24 hours |
| Moisture content | % | 20 or less | JISA 5422 |
| Water absorption rate | % | 50 or less | Water absorption 24 hours 105°C / 24 |
| Bending fracture load | N | 785 or more | JISA 5422 |
| Impact resistance | — | Passed | JISA 5422 |
* In-house test data
Ceradir V 14 specification & performance list
| Item | Unit | Ceradir V 14 | |
|---|---|---|---|
| Flexural modulus | N/ mm2 | 2324* | |
| Moisture permeability coefficient | ng/m2, S, Pa | 333.6 | |
| Thermal conductivity | W/m, K | 0.268 | |
| Coefficient of linear expansion | /K | 7.2×10-6 | |
| Sound insulation |
Sound transmission loss (500Hz) | dB | 28 |
| Sound transmission loss (1000Hz) | dB | 33 | |
| Frame retardance | Non-combustible material QM-0739 |
||
* In-house test data
Ceradir V 14 panel dimensions
| Product name |
Core | Thickness (mm) |
Length (mm) |
Length (mm) |
Weight (kg/panel) |
|---|---|---|---|---|---|
| Ceradir V 14 | Solid | 14 | 3000 | 455 | 21 (15.4kg/SQM) |
Mixture of fiber-cement siding panel: Cement, Silica, Organic fiber(Ex.Pulp etc.), Pulp
Catalog
-
Ceradir V 14 catalog
Maintenance instructions
-
Maintenance instructions
Installation manuals
Tools
-

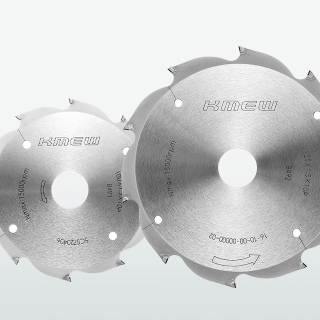

Tools for cutting siding panel Diamond 10 tipped circular saw blade -

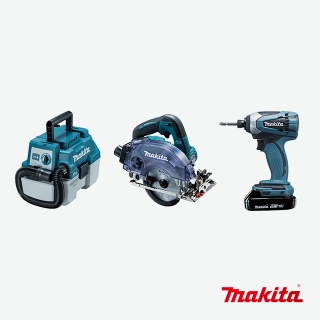

Recommended tools for panel cutting & installation
